Expression language in Symfony

Beyond the Framework

By Rémi JANOT
| r.remove.this.janot@gmail.com

1.

What is the problem?

2.

How can Expression Language help me?

3.

Demo time

About me

Live in France

AFOL

Comedian

About me & my work

About me & my work

Co-founder & CTO at Wheeliz

About me & my work

Co-founder & CTO at Vasco.fund

Creating a Startup

« How to change anything As Fast As POSSIBLE »

Friday 6 p.m.

« Hey Rémi ! 👋 We send a newsletter in a few minutes because Sunday is Mothers’ Day. But we would like to try a new discount code that make… »

« Hey Rémi ! 👋 We send a newsletter in a few minutes. We have created the discount code of 10€ but it should only be usable by users which… »

Creating a SAAS Startup

« How to change anything As Fast As LIGHTNING »

What does Vasco.fund do?

Vasco is a software dedicated to private banking and small & medium asset managers

These professions are required to ask many financial questions: KYC (Know Your Customer)

They have plenty of questions to ask

Monday 10 a.m.

« Hey Rémi ! 👋 Customer A would like to have a question only in case X »

Create the question entity

						namespace App\Entity;
						// use ...
						class Question
						{
							private ?int $id = null;

							#[Assert\NotBlank]
							private ?string $question;

							#[Assert\NotBlank]
							private ?string $condition = null;

							public function getId(): ?int
							{
								return $this->id;
							}

							public function getQuestion(): ?string
							{
								return $this->question;
							}

							public function setQuestion(?string $question): self
							{
								$this->question = $question;

								return $this;
							}

							public function getCondition(): ?string
							{
								return $this->condition;
							}

							public function setCondition(string $condition): self
							{
								$this->condition = $condition;

								return $this;
							}
						}


What are cases X, Y and Z?

1st solution

• List every simple case that may arrived
• List combinations of these cases
• Name these cases
• Create an SQL snippet for every cases

SQL query to get questions

						SELECT *
						FROM kyc_question
						WHERE
						(
							kyc_question.condition == 'isWoman'
							AND (
								SELECT 1
								FROM user
								WHERE id=:loggedInUserId AND gender = 'woman'
							)
						)
						OR
						(
							kyc_question.condition == 'isCompany'
							AND (
								SELECT 1
								FROM user
								WHERE id=:loggedInUserId AND type = 'company'
							)
						)
						OR
						(
							kyc_question.condition == 'isFrenchCompany'
							AND (
								SELECT 1
								FROM user
								WHERE id=:loggedInUserId AND type = 'company'
								AND country = 'FR'
							)
						)
						OR
						(
							kyc_question.condition == 'hasInvestedMoreThan1M'
							AND (
								SELECT 1
								FROM user
								WHERE id=:loggedInUserId
								AND cumulatedInvestment >= 1000000
							)
						)
						OR
						(
							kyc_question.condition == 'sameCountry'
							AND (
								SELECT 1
								FROM user
								WHERE id=:loggedInUserId
								AND country = SUBSTR(iban, 1, 2)
							)
						)
						/* ... */


It works !

🚀

1st solution

• List every simple case that may arrived
• List combinations of these cases
• Name these cases
• Create an SQL snippet for every cases
• Cross fingers

Drawback of the 1st solution 🤔

• Complex query
• Need a release to add a new condition
• Many dead code depending on the SaaS configuration
• Need a developer to add a new condition

2nd solution

• Complex query
• Need a release to add a new condition
• Many dead code depending on the SaaS configuration
• Need a developer to add a new condition

2nd solution

Need to keep the condition field

Evaluate in PHP

Create the question repository

						class QuestionRepository
						{
							public function findQuestionsForUser(User $user)
							{
								$toReturn = [];
								foreach($this->findAll() as $question) {
									if ($this->isRelevant($question, $user)) {
										$toReturn[] = $question;
									}
								}
								return $toReturn;
							}

							public function isRelevant(Question $question, User $user): bool
							{
								switch($question->getCondition()) {
									case 'isWoman':
										return $user->getGender() === 'woman';
									case 'isCompany':
										return $user->getType() === 'company';
									case 'isFrenchCompany':
										return $user->getType() === 'company' && $user->getCountry() === 'FR';
									case 'hasInvestedMoreThan1M':
										return $user->getCumulatedInvestment() >= 1000000;
									case 'sameCountry':
										return $user->getCountry() !== substr($user->getIban(), 0, 2);
								}
								throw new \OutOfBoundsException();
							}
						}


2nd solution

• Complex query
• Need a release to add a new condition
• Many dead code depending on the SaaS configuration
• Need a developer to add a new condition

3rd solution

• Complex query
• Need a release to add a new condition
  ⇒ put the PHP condition code in the DB
• Many dead code depending on the SaaS configuration
• Need a developer to add a new condition

						class QuestionRepository
						{
							//...

							public function isRelevant(Question $question, User $user): bool
							{
								return eval($question->getCondition());
							}
						}


3rd solution

• Complex query
• Need a release to add a new condition
• Many dead code depending on the SaaS configuration
• Need a developer to add a new condition

CRITICAL SECURITY ISSUE

Variables can be read or changed

Dangerous functions accessible, can alter system files

If eval() is the answer, you're almost certainly asking the wrong question.

Rémi, you are supposed to talk about Expression Language 😕

What is Expression Language

• Really simple programmation language
  • Only one liner
  • A very restricted PHP sandbox: No functions given by default
• Used in Symfony Core
  • Introduced in September 2013, in Symfony 2.4
• The expression can be evaluated at runtime or compiled into PHP

Usage of ExpressionLanguage in Symfony Core

Dependency Injection

						services:
							# ...

							App\Mail\MailerConfiguration: ~

							App\Mailer:
								# the '@=' prefix is required when using expressions for arguments in YAML files
								arguments:
									- '@=service("App\\Mail\\MailerConfiguration").getMailerMethod()'

								# when using double-quoted strings, the backslash needs to be escaped twice (see https://yaml.org/spec/1.2/spec.html#id2787109)
								# arguments: ["@=service('App\\\\Mail\\\\MailerConfiguration').getMailerMethod()"]


Usage of ExpressionLanguage in Symfony Core

Security

						namespace App\Controller;

						use Symfony\Bundle\FrameworkBundle\Controller\AbstractController;
						use Symfony\Component\ExpressionLanguage\Expression;
						use Symfony\Component\Security\Http\Attribute\IsGranted;

						class MyController extends AbstractController
						{
							#[IsGranted(new Expression(
								'is_granted("ROLE_ADMIN") or is_granted("ROLE_MANAGER")'
							))]
							public function show()
							{
								// ...
							}
						}


Usage of ExpressionLanguage in Symfony Core

Routing

						namespace App\Controller;

						use Symfony\Bundle\FrameworkBundle\Controller\AbstractController;
						use Symfony\Component\Routing\Annotation\Route;

						class DefaultController extends AbstractController
						{
							#[Route(
								'/contact',
								name: 'contact',
								condition: "
									context.getMethod() in ['GET', 'HEAD']
									and request.headers.get('User-Agent') matches '/firefox/i'
								",
							)]
							public function contact()
							{
								// ...
							}


Usage of ExpressionLanguage in Symfony Core

Validation

						namespace App\Model;

						use Symfony\Component\Validator\Constraints as Assert;

						#[Assert\Expression(
							"this.getCategory() in ['php', 'symfony']
							or !this.isTechnicalPost()",
							message: 'If this is a tech post, the category should be either php or symfony!',
						)]
						class BlogPost
						{
							// ...
						}


Usage of ExpressionLanguage in Symfony Core

Workflows

						framework:
							workflows:
								blog_publishing:
									transitions:
										reject:
											guard: "is_granted('ROLE_ADMIN') and subject.isRejectable()"
											from: reviewed
											to:   rejected


						class QuestionRepository
						{
							//...

							public function isRelevant(Question $question, User $user): bool
							{
								// ExpressionLanguage evaluation here
							}
						}


3rd solution

• Complex query
• Need a release to add a new condition
• Many dead code depending on the SaaS configuration
• Critical security issue
• Need a developer to add a new condition

4th solution

• Complex query
• Need a release to add a new condition
• Many dead code depending on the SaaS configuration
• Critical security issue
• Need a developer to add a new condition

Create your own Expression Language component

						namespace App\Service;

						use Psr\Cache\CacheItemPoolInterface;
						use Symfony\Component\ExpressionLanguage\ExpressionLanguage
							as BaseExpressionLanguage;

						class QuestionExpressionLanguage extends BaseExpressionLanguage
						{
							public function __construct(
								CacheItemPoolInterface $cache = null,
								array $providers = []
							) {
								parent::__construct($cache, $providers);
							}
						}


Use your own Expression Language

						class QuestionRepository
						{
							public function __construct(
								private \App\Service\QuestionExpressionLanguage $expressionLanguage,
								private \Symfony\Component\Serializer\NormalizerNormalizerInterface $normalizer
							)
							{
							}
							//...

							public function isRelevant(Question $question, User $user): bool
							{
								return $this->expressionLanguage->evaluate(
									$question->getCondition(),
									[
										'question' => $this->normalizer->normalize($question),
										'user' => $this->normalizer->normalize($user),
									]
								);
							}
						}


Expressions

user["gender"] === "woman"

user["type"] === "company"

									user["type"] === "company"
									and
									user["country"] === "FR"


Expressions

									getCumulatedInvestment(user["id"]) >= 1000000


									user["country"] !== substr(user["iban"], 0, 2)


4th solution

• Complex query
• Need a release to add a new condition
• Many dead code depending on the SaaS configuration
• Critical security issue
• Need a developer someone knowing a little about the database schema / objects given and understanding this simple language to add a new condition

SyntaxError

The function "getCumulatedInvestment" does not exist around position 1 for expression `getCumulatedInvestment(user["id"]) >= 1000000`.

The function "substr" does not exist around position 20 for expression `user["country"] !== substr(user["iban"], 0, 2)`.

Register your own functions

						namespace App\Service;

						use Psr\Cache\CacheItemPoolInterface;
						use Symfony\Component\ExpressionLanguage\ExpressionLanguage
							as BaseExpressionLanguage;

						class QuestionExpressionLanguage extends BaseExpressionLanguage
						{
							public function __construct(
								CacheItemPoolInterface $cache = null,
								array $providers = []
							) {
								parent::__construct($cache, $providers);
							}
						}


Group your functions in Providers

						use Symfony\Component\ExpressionLanguage\ExpressionFunction;
						use Symfony\Component\ExpressionLanguage\ExpressionFunctionProviderInterface;

						class StringExpressionLanguageProvider
							implements ExpressionFunctionProviderInterface
						{
							public function getFunctions(): array
							{
								return [
									ExpressionFunction::fromPhp('substr')
								];
							}
						}


Group your functions in Providers

						use Symfony\Component\ExpressionLanguage\ExpressionFunction;
						use Symfony\Component\ExpressionLanguage\ExpressionFunctionProviderInterface;

						class TransactionExpressionLanguageProvider
							implements ExpressionFunctionProviderInterface
						{
							public function __construct(
								private EntityManagerInterface $entityManager
							) {
							}

							public function getFunctions(): array
							{
								return [
									new ExpressionFunction(
										// name
										'getCumulatedInvestment',
										// compiler
										function() {return '';},
										// evaluator
										function ($arguments, $user): int {
											return $this->entityManager
												->getRepository(Transaction::class)
												->getCumulatedInvestment($user);
										}
									)
								];
							}
						}


Create your own Expression Language component

					services:
						App\Service\QuestionExpressionLanguage:
							arguments:
								$providers:
									- '@App\ELProvider\TransactionExpressionLanguageProvider'
									- '@App\ELProvider\StringExpressionLanguageProvider'
						App\Service\FeatureFlagExpressionLanguage:
							arguments:
								$providers:
									- '@App\ELProvider\StringExpressionLanguageProvider'

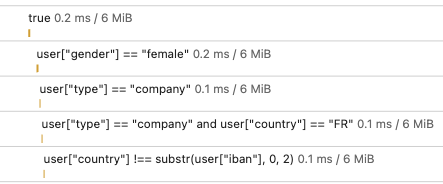

Performance

We did it !

🚀

Optimize: Use cache

						namespace App\Service;

						use Psr\Cache\CacheItemPoolInterface;
						use Symfony\Component\ExpressionLanguage\ExpressionLanguage
							as BaseExpressionLanguage;

						class QuestionExpressionLanguage extends BaseExpressionLanguage
						{
							public function __construct(
								CacheItemPoolInterface $cache = null,
								array $providers = []
							) {
								parent::__construct($cache, $providers);
							}
						}


Optimize: Use cache

• By default, cache is an ArrayAdapter
  ➜ cache only for the request lifetime
• PSR-6 Cache adapter provided by Symfony:
  • APCU
  • Couchbase
  • Doctrine / PDO
  • File system
  • Memcached
  • Redis

Optimize: What does the cache change?

Steps for expression evaluation:

						public function evaluate(Expression|string $expression, array $values = []): mixed
						{
							return $this->parse($expression, array_keys($values))
								->getNodes()
								->evaluate($this->functions, $values);
						}


Optimize: What does the cache change?

parse()

The parse function takes the expression string and creates PHP objects acting like the expression

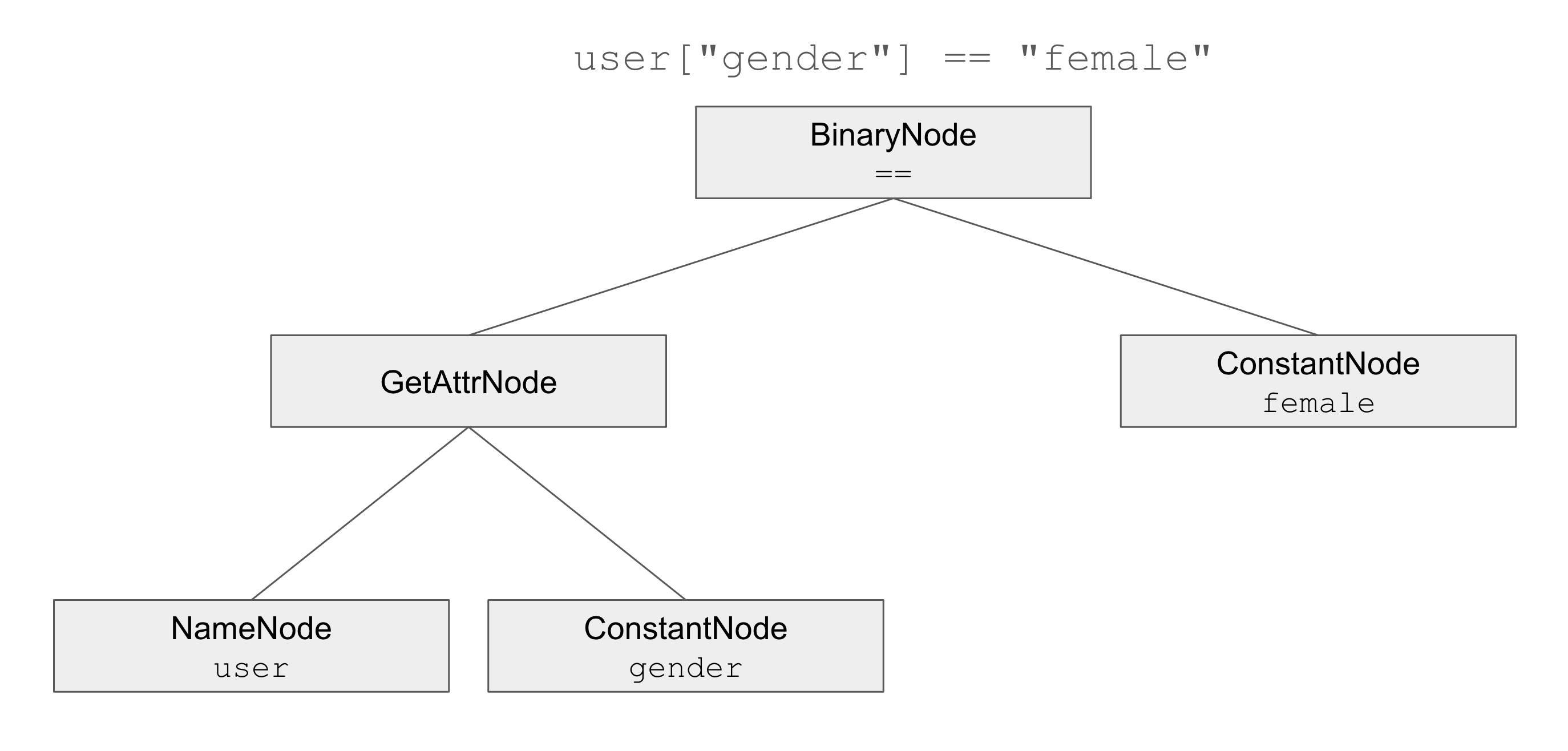

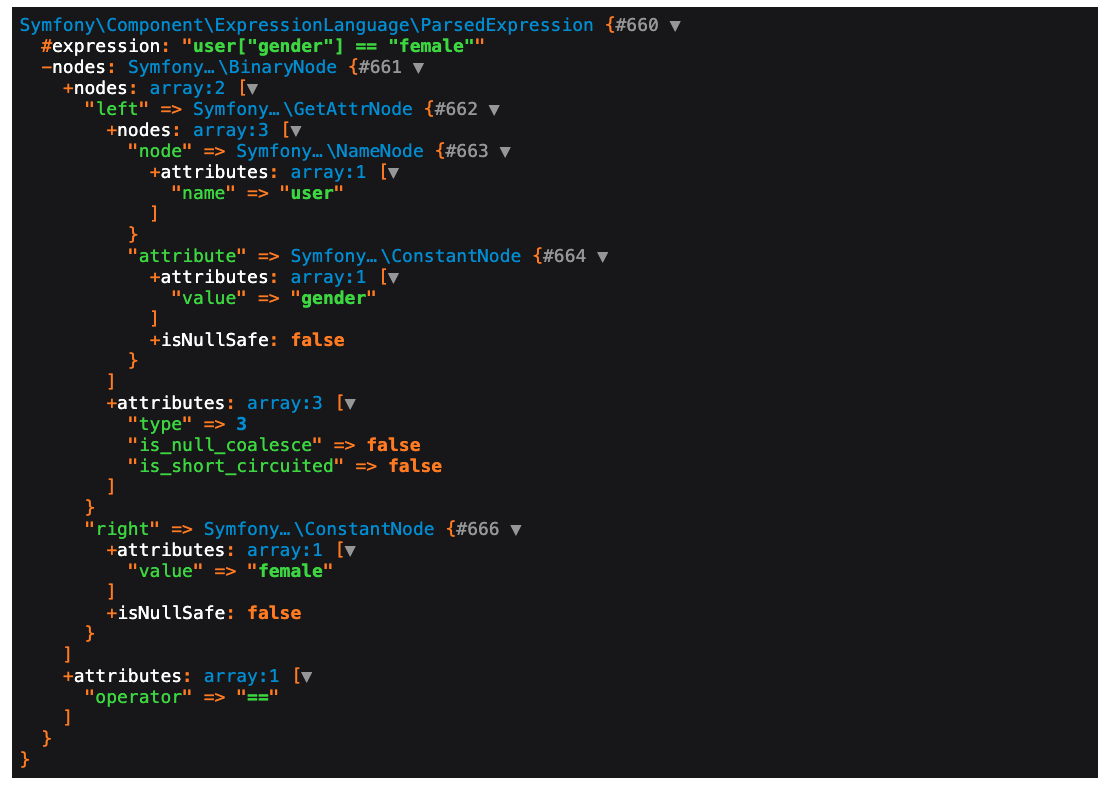

These PHP objects are an Abstract Syntax Tree

Optimize: How to speed up evaluation?

Removing AST evaluation

Compilation

When Symfony is building its cache, some PHP files are created (the container, the router, ...)

Symfony takes expressions given in yaml or attributes and compiles them to have a runnable PHP code

This PHP code is written in cached PHP files

This PHP code is executed at runtime, but as it is PHP code it is faster than evaluating the AST

Compilation

						services:
							# ...
							App\Mailer:
								arguments:
									- '@=service("App\\Mail\\MailerConfiguration").getMailerMethod()'


Compilation

					/**
					 * @internal This class has been auto-generated by the Symfony Dependency Injection Component.
					 */
					class getMailerService extends App_KernelDevDebugContainer
					{
						/**
						 * Gets the private 'App\Mailer' shared autowired service.
						 *
						 * @return \App\Mailer
						 */
						public static function do($container, $lazyLoad = true)
						{
							include_once \dirname(__DIR__, 4).'/src/Mailer.php';

							return $container->privates['App\\Mailer'] =
								new \App\Mailer(
									$container->get("App\\Mail\\MailerConfiguration")->getMailerMethod()
								);
						}
					}


Think out of the box

• Determine form field visibility (in a dynamic form)
• Discount codes (is applicable & amount)
• Feature flags
• CMS Page access control
• ...

Demo time
